Kriega Haul Loop - Front

FEATURES

There are 2 methods of fitting the front Haul Loop. Both use 2 x H-Duty cable ties:

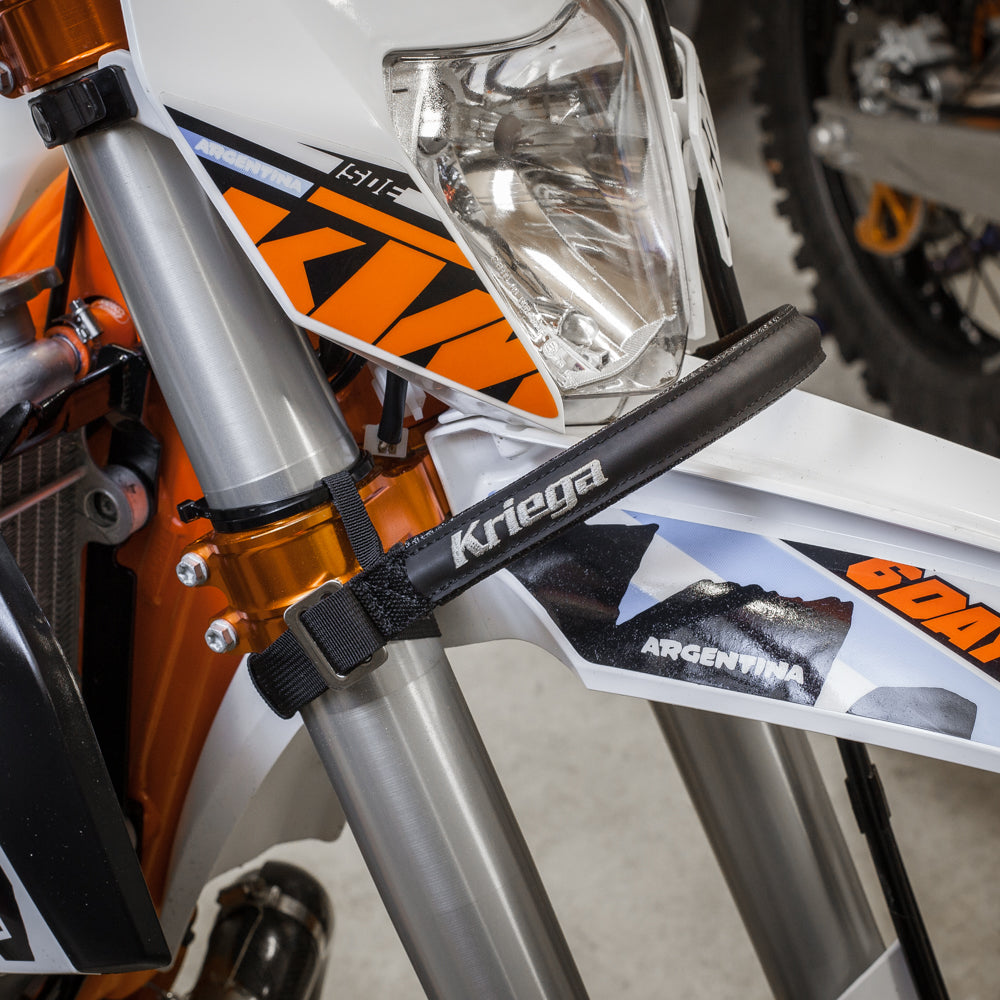

Undo web on the stainless buckles. Wrap the web around the fork leg, directly under the lower triple-clamp. Re-thread the stainless buckles(making sure to feed the web back through the buckle to 'lock' it off). The loose end can be placed under the elastic-loop provided. To prevent the Haul Loop moving down the fork leg/s you need to use a cable tie in either 2 ways. The first method is to feed the cable tie through the small web-loop next to the stainless buckle. Connect the cable tie and tighten around the fork leg directly above the lower triple-clamp (this method is illustrated on the 'Haul Loop' page) Another method is to use 2 x cable ties linked together in a figure of eight behind the front light/number plastic (this method is shown on this page). The figure of eight method is a superior one, as you can fine tune the angle of the Haul Loop by decreasing the length/s of the cable ties. The shorter the tie the more elevated the Haul Loop will sit.

TECH-SPECS

• Semi-rigid design
• Universal fit (front only)
• Ultra-tough construction
• HYPALON: abrasion resistant re-enforcement
• TOUGHTEK - grips wet or dry
• Alloy buckles

Fitting Guide

WEIGHT

70g /2.4oz

PRODUCT CODE
KWEHL
