Kriega Ducati Scrambler US Drypack Fit Kit

SKU: KADSFK

DUCATI SCRAMBLER 2019 on FULL THROTTLE & CAFE RACER ONLY

The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the seat using the existing mounting locations.

Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.

When not in use the straps can be simply folded away, under the seat.

FITTING

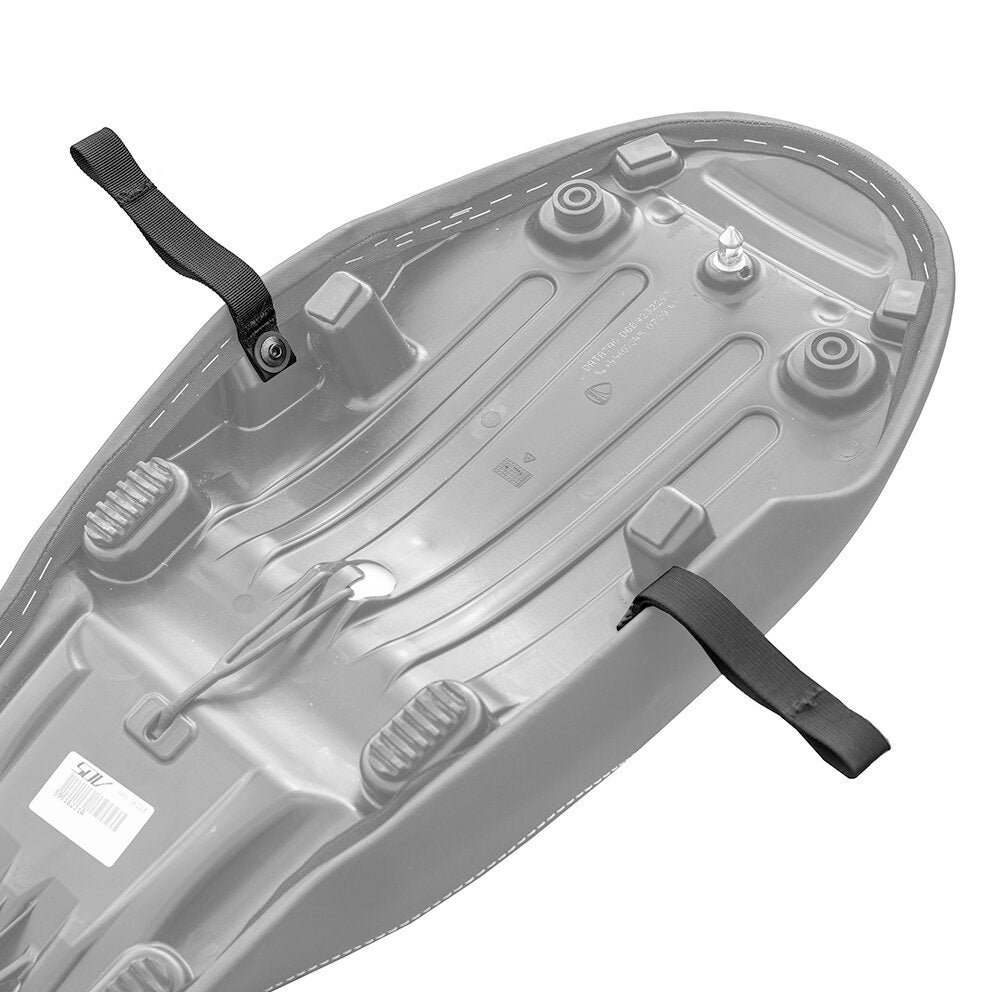

Remove the seat and undo the 2 screws that hold the passenger seat cover and remove it from the seat. Slide an M6 washer inside each hypalon loop. Place another M6 washer on each seat cover screw and mount 2 loops to the underside of the seat using existing location holes.

Mount the other 2 loops to the indicator mounting bolts on the underside of the rear frame using the M6 washers and existing bolts as illustrated here. Straps can be folded under the seat and rear frame when not in use. You are now ready to mount any size Kriega US-Drypack

PACK CONTENTS

4 x 155mm bolt-on loops
8 x M6 washers
